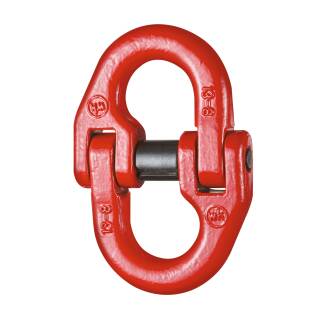

Verbindungsglieder Güteklasse 8
|
Art. Nr. 3150 - |
Kenn-Nr. ( mm ) |
WLL ( t ) |
b ( mm ) |
h1 ( mm ) |
h2 ( mm ) |
| - 0600 | 6 | 1,12 | 17 | 43 | 17 |
| - 0780 | 7 | 1,50 | 22 | 54 | 22 |
| - 0800 | 8 | 2,00 | 23 | 60 | 25 |
| - 1000 | 10 | 3,15 | 29 | 73 | 30 |
| - 1300 | 13 | 5,30 | 35 | 87 | 34 |
| - 1600 | 16 | 8,00 | 39 | 104 | 42 |
| - 1800 | 18 | 10,00 | 42 | 112 | 43 |
| - 2000 | 20 | 12,50 | 46 | 120 | 47 |
| - 2200 | 22 | 15,00 | 57 | 142 | 57 |
| - 2600 | 26 | 21,20 | 68 | 160 | 65 |
| - 3200 | 32 | 31,50 | 85 | 205 | 85 |
